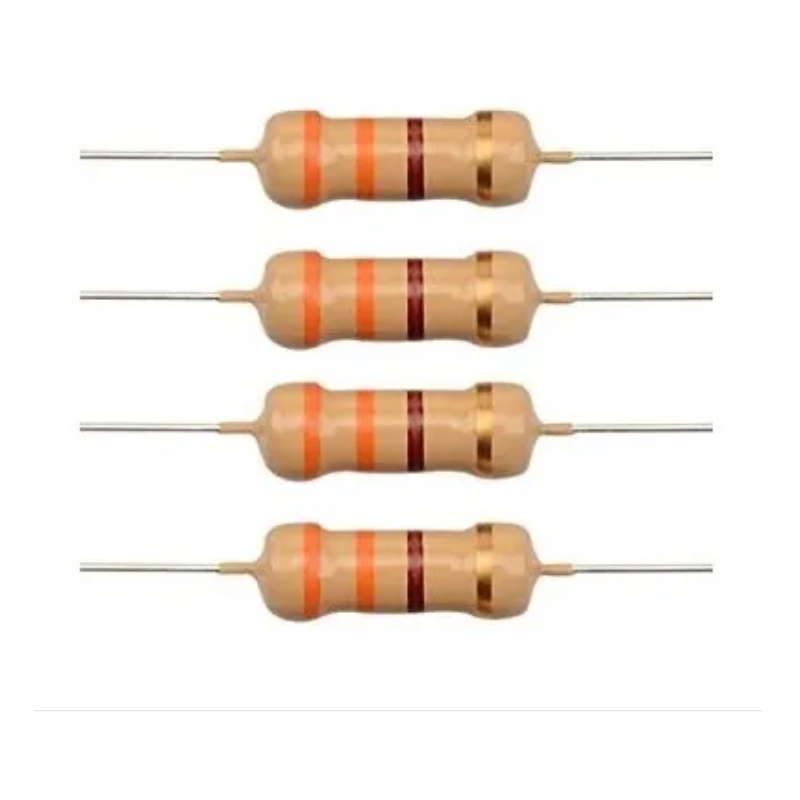

Understanding the 330 Ohm Resistor and Your LED

1. Why Limit the Fun? The Role of Resistors

So, you're tinkering with LEDs, huh? That's awesome! But before you go plugging them directly into a power source and potentially creating a mini-firework show (and not the good kind), let's talk about resistors. Think of a resistor as the chill friend who tells the overly enthusiastic LED to calm down a bit. LEDs, by their nature, are current-hungry little devices. Without something to limit that current, they'll try to suck up as much juice as possible, leading to a quick burnout and a sad, dim end. A resistor is there to politely, but firmly, say, "Hey, slow your roll, buddy. Let's make this last."

Now, why 330 ohms specifically? Well, that's where things get a little math-y, but don't worry, we'll keep it simple. The ideal resistor value depends on a few things: the voltage of your power supply (like a battery or USB port) and the forward voltage and current requirements of your LED. The forward voltage is basically the amount of voltage the LED needs to turn on, and the current requirement is how much current it needs to shine brightly without popping. For a common 5V power supply and a typical red LED with a forward voltage of around 2V and a current requirement of 20mA (0.02A), a 330 ohm resistor is often a great starting point.

Think of it like baking. You wouldn't just throw a bunch of ingredients into a bowl without a recipe, right? You need the right proportions to get a delicious cake. Similarly, the resistor is part of the "recipe" for a healthy and happy LED circuit. Using the wrong resistor value can either lead to a dim LED (too much resistance) or a dead LED (not enough resistance). It's all about finding that sweet spot.

Don't be afraid to experiment (safely, of course!). While 330 ohms is a common choice, it's not a one-size-fits-all solution. Different LEDs have different requirements. Always check the datasheet for your specific LED model to find its forward voltage and current ratings. Or, if you're feeling adventurous, you can use an online LED resistor calculator to determine the ideal value for your setup. Just remember, starting with a higher resistance is generally safer than starting with a lower one. It's better to have a slightly dim LED than a permanently extinguished one!

Why 330 Ohms? The Math Behind the Magic

2. Ohm's Law

Okay, time for a little bit of electricity theory. But fear not, it's not as scary as it sounds. The key to understanding why 330 ohms is often used lies in Ohm's Law: V = IR, where V is voltage, I is current, and R is resistance. In our LED circuit, we want to limit the current flowing through the LED to its specified value (usually around 20mA for standard LEDs) when connected to a particular voltage source, often 5V.

So, let's say we have a 5V power supply and a red LED with a forward voltage of 2V and a desired current of 20mA (0.02A). We first need to calculate the voltage drop across the resistor. This is simply the supply voltage minus the LED's forward voltage: 5V - 2V = 3V. Now, we can use Ohm's Law to find the required resistance: R = V / I = 3V / 0.02A = 150 ohms. Why not 150 then? Good question! We need to add some safety margin. Choosing a slightly higher value like 220 or 330 ohms protects the LED from slight voltage fluctuations or inaccuracies in the LED's specifications.

That extra resistance ensures that the current flowing through the LED remains within safe limits, extending its lifespan. It's like putting on sunscreen — it's a little extra protection that can prevent a lot of damage later on. Using a resistance that is too low can cause the LED to burn out quickly, while a resistance that is too high will make the LED dim or not light up at all. So, while 150 ohms is the "perfect" calculated value, 330 ohms provides a comfortable safety buffer. It's also a readily available and commonly used resistor value, making it a convenient choice for many LED projects.

It's also important to consider the power rating of the resistor. The power dissipated by the resistor can be calculated using P = IR. In our example, P = (0.02A) 330 ohms = 0.132 watts. Therefore, a standard 1/4 watt (0.25 watt) resistor is more than sufficient. Always make sure your resistor can handle the power dissipated by the circuit, or it might overheat and fail. This is especially important for higher voltage or current applications.

Practical Applications and Scenarios

3. Where Will You See 330 Ohm Resistors with LEDs?

You'll find 330 ohm resistors paired with LEDs in a wide variety of applications. They're practically the peanut butter and jelly of the electronics world! Think about simple indicator lights on electronic devices. A small LED, lit up by a 330 ohm resistor, might tell you that your power adapter is plugged in or that your coffee maker is ready to brew. These simple visual cues rely on the reliable current-limiting action of the 330 ohm resistor.

They also pop up in DIY electronics projects like Arduino-based circuits. If you're building a blinking LED display or creating a mood lighting system, chances are you'll be reaching for a handful of 330 ohm resistors. Their versatility and availability make them a go-to choice for hobbyists and professionals alike. Imagine building a custom video game controller with illuminated buttons — each button's LED likely has a 330 ohm resistor ensuring it shines brightly and lasts a long time.

Furthermore, 330 ohm resistors are commonly used in educational settings. Students learning about basic electronics often use them in introductory circuits. They provide a safe and predictable way to experiment with LEDs without the risk of damaging components. It's a great way to demonstrate Ohm's Law and the principles of current limiting in a practical, hands-on manner. Think of a classroom filled with budding engineers, each building their first LED circuit with a 330 ohm resistor, laying the foundation for future innovations.

Beyond the purely functional, 330 ohm resistors also play a role in aesthetic designs. In illuminated signs, decorations, and wearable electronics, LEDs with 330 ohm resistors provide consistent and pleasing light output. Consider the subtle glow of LED accent lighting in a custom-built PC or the twinkling lights on a festive holiday display. The reliable performance of the 330 ohm resistor ensures that these lights shine brightly and consistently, enhancing the overall visual appeal of the project.

Alternatives and Considerations

4. Not Always the Best Choice?

While 330 ohms is a common and convenient choice, it's not always the absolute best* value for every situation. Remember, the ideal resistor value depends on the specific LED and power supply you're using. For example, if you're using a blue or white LED, which typically have higher forward voltages (around 3-3.6V), you might need a lower value resistor to achieve the desired brightness. Conversely, if you're using a higher voltage power supply (like 12V), you'll need a higher value resistor to limit the current effectively.

In some cases, using a potentiometer (a variable resistor) can be a good alternative. This allows you to adjust the resistance and, therefore, the brightness of the LED. This is particularly useful when you want to experiment with different brightness levels or when you're not sure of the exact resistor value you need. However, potentiometers are generally more expensive and take up more space than fixed resistors.

Another consideration is the tolerance of the resistor. Resistors are not perfect; their actual resistance can vary slightly from their stated value. A resistor with a 5% tolerance, for example, could have an actual resistance that is 5% higher or lower than its nominal value. This variation can affect the brightness of the LED, especially if you're trying to achieve a very specific brightness level. For more critical applications, you might want to use resistors with a tighter tolerance (e.g., 1% or 0.1%).

Finally, consider the long-term effects. Over time, the characteristics of LEDs can change, and the voltage output of power supplies can fluctuate. Choosing a slightly higher resistance value than the calculated ideal can provide an extra margin of safety and help to extend the lifespan of the LED. Think of it like buying shoes that are slightly too big — you can always wear thicker socks, but you can't make shoes that are too small fit comfortably.

FAQ

5. Frequently Asked Questions About Resistors and LEDs

Still have questions swirling around your head like electrons in a circuit? No problem! Let's tackle some common FAQs:

Q: What happens if I don't use a resistor with my LED?

A: Disaster! Well, maybe not a full-blown disaster, but you'll likely burn out your LED very quickly. LEDs are current-sensitive devices, and without a resistor to limit the current, they'll try to draw too much power, leading to overheating and failure.

Q: Can I use a resistor with a higher resistance than 330 ohms?

A: Yes, you can, but the LED will be dimmer. The higher the resistance, the less current will flow through the LED, resulting in reduced brightness. Experiment to find a value that provides the desired brightness without overdriving the LED.

Q: Can I use a resistor with a lower resistance than 330 ohms?

A: Be careful! Using a resistor that's too low can allow too much current to flow through the LED, potentially damaging it. Always check the LED's datasheet and calculate the appropriate resistor value before using a lower resistance.

Q: Where can I find the datasheet for my LED?

A: The easiest way is to search online for the LED's part number. The datasheet will provide all the important specifications, including the forward voltage, forward current, and maximum ratings.
